Installation Tips:
Take care not to cross-thread the bolts into the fork arch bosses. It’s best to tighten each bolt little by little rather than one fully and then the other.

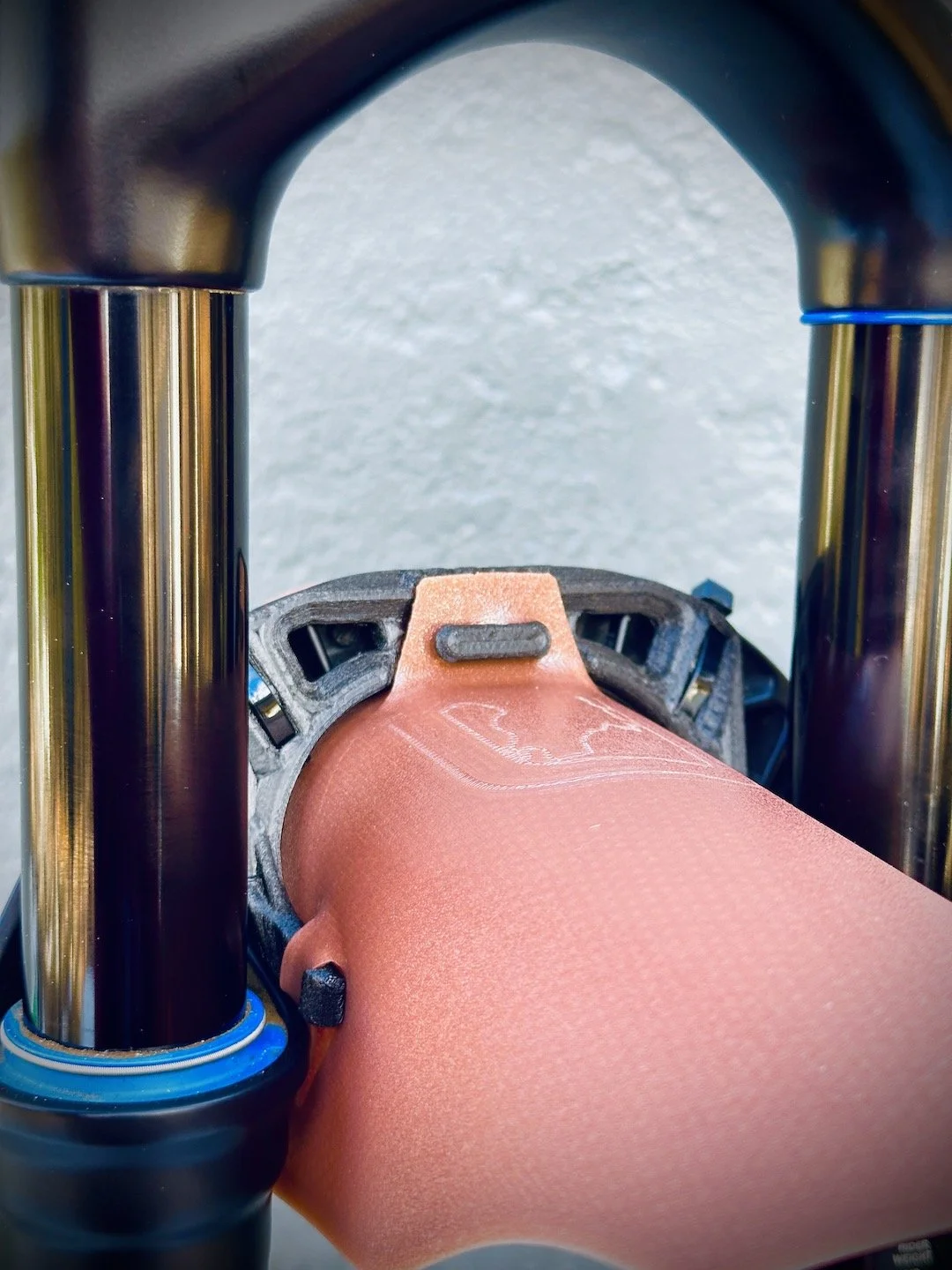

When attaching the fender onto the mount, especially for the first time, it helps to slightly pull on the edge of the fender strap to create a gap that the mount hooks can start working their way into. After the fender has been attached for a while, the straps will form to the mount arms and removing/replacing it will be even faster and easier.
While the mounts are very strong, avoid using excessive force if you are having trouble getting the fender to attach. Instead, you may remove the mount, attach the fender first, and then mount the complete mudguard back onto the fork.
To remove the fender, undo the upper tab first, and then start to wiggle the fender away from the mount hooks by flexing it slightly to clear the edges of the mount hooks.
Thank you for choosing the BOQS Mudguard system, and please reach out with any questions or concerns.
